SIDE LOCK FOR MOULD

Side Lock for Mould - We are manufacturer of Side Lock for Mould.
Side Locks at Mould ensure positive alignment between the top and bottom halves of the mold when the utmost in accuracy is required.
Side Lock for Mould are widely used in various industrial applications.
They are fixed on the external part of the Mould where very high alignments / accuracy of mould is required.
It ensures positive alignment between Top & Bottom halves of the Mould. They are harden & grinded on very high precession surface grinder with close tolerance.

» Accurate alignment of mold halves
» Easy installation
» Industry-compatible sizes

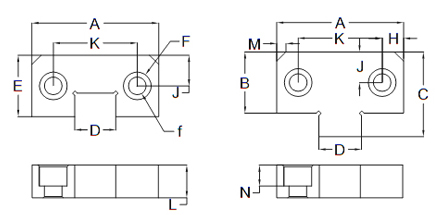

Side Lock for Mould

CODE	A	B	C	D	E	F	f	J	H	K	L	M	N
SL 50	50	21.5	30	17	21.5	10.5	6.5	11	8	34	16	5	8
SL 75	75	36	50	25	36	16.5	10.5	18	12.5	50	19	5	12
SL 100	100	45	65	35	45	16.5	10.5	22	15	70	19	5	12
SL 125	125	45	65	45	45	16.5	10.5	22	20.5	84	25	5	12
