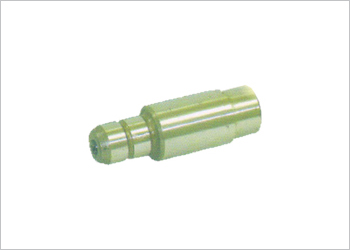

Blow Mould Guide Pin Bush

BLOW MOULD GUIDE PIN BUSH

Blow Mould Guide Pin Bush - We are manufacturers of Blow Mould Guide Pin Bush. We can make Blow Mould Guide Pin Bush as per customer requirements. Blow Mould Guide Pin Bush is also available in case harden or other material.

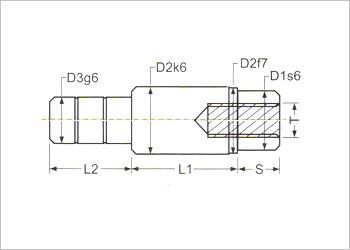

Blow Mould Guide Pin (BMGP)

BMGP	D2	L1	D1	S	D3	L2	T
16	16	25	14	10	11	18	8
18	18	25	16	10	13	18	8
22	22	30	20	10	16	18	8
25	25	30	22	10	19	25	10

For Ordering Pin	Type	Size	Qty.
e. g.	Blow Mould Guide Pin	16	20

Blow Mould Guide Bush (BMGB)

BMGB	D2	L1	D1	S	D3	L2	T
16	16	25	14	10	11	20	8
18	18	25	16	10	13	20	8
22	22	30	20	10	16	25	8
25	25	30	22	10	19	25	10

For Ordering Bush	Type	Size	Qty.
e. g.	Blow Mould Guide Bush	16	20

Material : EN - 31 / OHNS HRC - 48 - 52

Note : Also available in case harden or other material. Manufactured Blow Mould Guide Pin Bush as per customer requirement.
